How A Channel Based Ensemble Produces Cleaner Pseudo Labels

Why a confident prediction is not the same as a correct one

Semi supervised learning exists because labeling data is expensive and unlabeled data is cheap. Pseudo label methods try to make the most of that imbalance by having a model label its own unlabeled data, then training on those self generated labels as if they were real ones. FixMatch does this by comparing a weakly augmented version of an image against a strongly augmented version, keeping only the predictions confident enough to clear a threshold. FreeMatch improves on this by adjusting that confidence threshold adaptively as training progresses rather than using one fixed number throughout.

The paper’s central complaint is that both of these approaches treat a high confidence score as if it were a proxy for a correct answer, and that assumption breaks down more than people tend to assume. A model can be confidently wrong, and once a wrong pseudo label sneaks into training, the self training loop has no built in mechanism to catch it. The model just keeps reinforcing its own mistake. This gets substantially worse with very little labeled data, since forty labeled CIFAR10 images barely gives a model enough signal to build a reliable internal sense of what each class actually looks like before it starts generating pseudo labels for the other fifty thousand unlabeled images in the dataset.

The authors frame the fix in statistical terms rather than just architectural ones. A good pseudo label generator needs to be unbiased, meaning its predictions should center around the true label on average, and low variance, meaning repeated predictions for the same image under different augmentations should not bounce around unpredictably. Existing pseudo label methods mostly work on the threshold policy, deciding which predictions to trust, without addressing whether the underlying predictions themselves are actually stable and correctly centered in the first place.

Why not just train several models and average them

Ensemble learning is the obvious classical answer to reducing bias and variance together, and the paper walks through why the usual ensemble recipes do not translate well to semi supervised learning. Model Ensemble, training several full separate networks and averaging their outputs, gives a real accuracy boost but multiplies both memory usage and training time by however many models you train, which is a rough tradeoff for a setting that is already expensive due to needing to process large amounts of unlabeled data every iteration. Temporal Ensemble, used in an earlier method, instead keeps a running exponential moving average of one model’s own past predictions, which is cheap but the paper argues it lacks a solid theoretical grounding and its ensemble gain in practice is limited.

A more recent approach called Multi Head Ensemble tries a middle ground, giving one shared backbone several separate prediction heads rather than training separate full networks. That is cheaper than Model Ensemble, but the authors identify a specific failure mode they call the homogeneous prediction problem. Left alone, the multiple heads tend to converge toward making nearly identical predictions as training continues, especially once the network has been training for a while, which quietly turns what looked like an ensemble back into a single model wearing several hats. This problem, the paper argues, is particularly damaging in semi supervised learning specifically, because the whole benefit of an ensemble in this setting comes from those heads disagreeing usefully with each other to average out individual errors, and a collapsed ensemble cannot do that.

The Chebyshev argument for why ensembling helps

Rather than just asserting that ensembling helps, the paper gives a short formal argument for why, built on the Chebyshev inequality, a basic tool from probability that bounds how far a random variable can stray from its expected value in terms of its variance.

The first result, framed as Lemma 1 in the paper, bounds the error between the ensemble’s averaged prediction and the true underlying label in terms of the variance and covariance of the individual heads that make up the ensemble.

Read past the notation and the message is fairly intuitive. The error bound has two ingredients. One is how noisy each individual head’s own prediction is, captured by the variance term. The other is how correlated the heads are with each other, captured by the covariance term. Lower variance in each head and lower correlation between heads both push the error bound down. A second result, Lemma 2, extends this to show that repeatedly predicting on the same image several times, as happens across training epochs, keeps the variance of the ensemble bounded by the variance of the individual heads rather than making it worse.

Two practical lessons fall directly out of this bound. Each head needs to be individually stable, meaning it should not flip its prediction wildly when the same image is shown with different augmentation. And the heads need to stay diverse from each other, meaning their errors should not be correlated, since two heads that are wrong in the same way at the same time provide no averaging benefit whatsoever. The rest of the method is essentially built to satisfy both conditions at once.

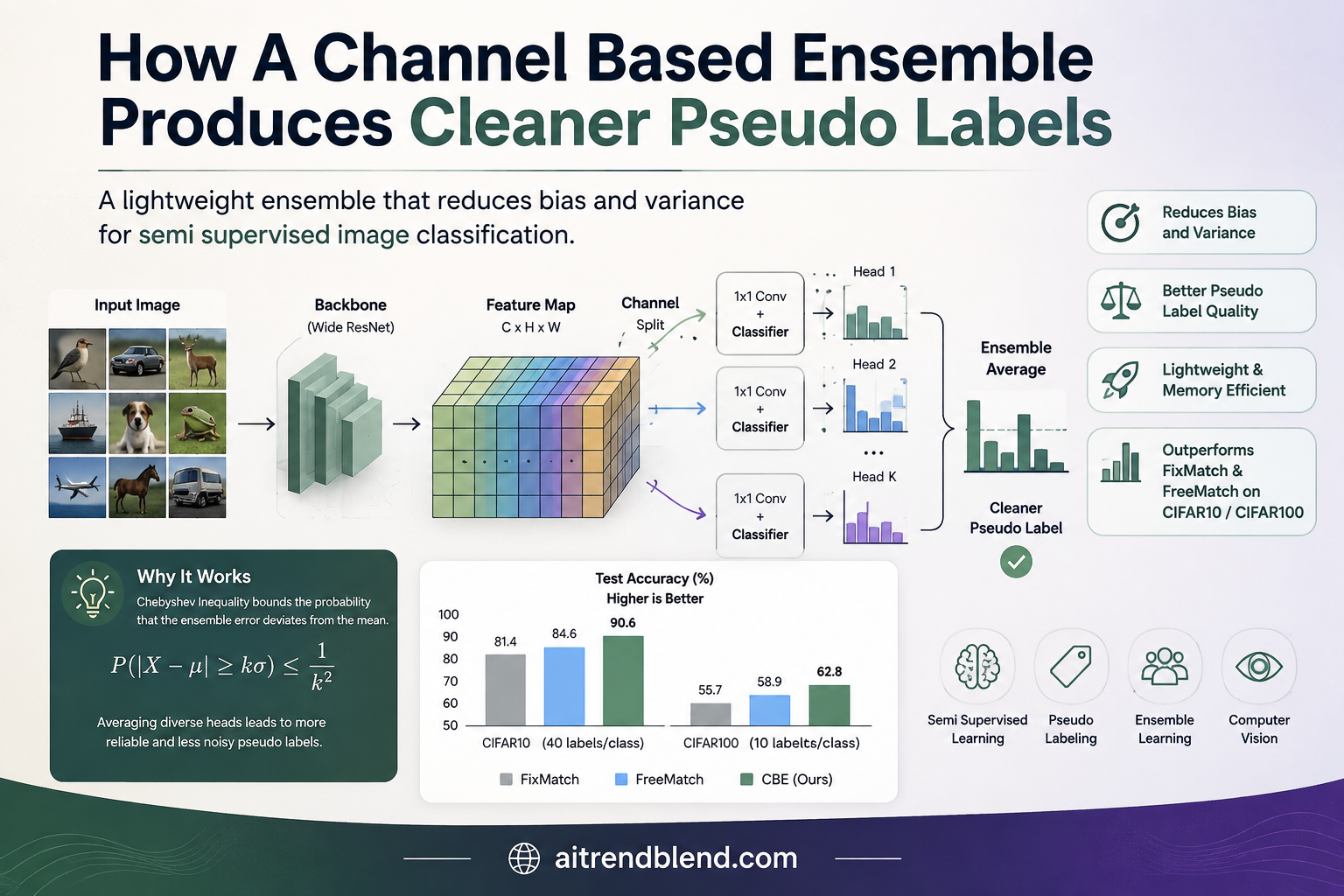

How CBE actually builds the ensemble

The architectural trick is almost disappointingly simple once you see it. Take the feature map a network normally produces just before its final classification layer, with some number of channels dedicated to that feature. Instead of feeding that feature straight into one classifier, pass it through a single 1×1 convolutional layer that expands the channel count, splitting the result into M separate slices, one per prediction head. Each slice shares a common block of channels across all heads, plus a smaller private block of channels unique to that particular head.

Because the shared block dominates the total channel count and only the small private block differs between heads, the extra parameter and computation cost of adding several heads this way stays close to negligible, which is exactly what the paper’s final cost comparison confirms.

Training runs two augmented copies of each image through this shared backbone in parallel, one branch and two, which the paper treats generically enough to plug into different base algorithms. When combined with FixMatch or FreeMatch, branch one carries the strongly augmented image and branch two carries the weakly augmented one, matching how those methods already operate. When combined with Mean Teacher instead, the two branches can be treated as a student branch and a teacher branch. For labeled data, a standard supervised loss trains every head against the true label directly.

For unlabeled data, branch two’s predictions across all heads get averaged into a single ensemble prediction, but only the heads that individually clear the confidence threshold contribute to that average for a given sample.

That ensemble prediction then acts as the pseudo label supervising branch one’s own predictions across all of its heads, which is the mechanism actually responsible for consolidating several individually noisy opinions into one steadier training signal.

Stopping the heads from collapsing into each other

The architecture alone is not enough, and the paper is upfront about this. Without any additional pressure to stay different from each other, the multiple heads drift toward producing nearly identical predictions as training continues, which is exactly the homogeneous prediction problem described earlier. Two loss terms are added specifically to counter this.

Low Bias loss, keeping the heads talking about different things

The Low Bias loss directly targets the covariance term from the Chebyshev bound. It penalizes correlation between the private feature blocks of different heads, encouraging each head to actually attend to something distinct rather than converging toward a shared, redundant representation.

Low Variance loss, keeping the ensemble anchored to reality

The Low Variance loss works differently, using the labeled data’s ground truth as an anchor point. Since the ensemble prediction’s variance can be decomposed into the individual variance of the prediction, the variance of the ground truth, and a covariance term between the two, maximizing that covariance term is a direct way to shrink overall variance.

Put together, the total training objective sums the standard supervised loss, the ensemble supervised loss, the Low Bias loss, and the Low Variance loss, each with its own balancing weight, though the paper reports simply setting every weight to 1 in its main experiments rather than tuning them individually.

One appealing practical detail is how little existing code needs to change to adopt this. The paper describes only three modifications needed to bolt CBE onto an existing pipeline, swapping the classification head for a multi head version using their provided module, applying the base method’s existing confidence threshold to the new ensemble prediction, and replacing the base method’s unsupervised loss with the ensemble supervised loss shown above.

Does the error rate drop actually hold up

The main results come from CIFAR10 and CIFAR100, tested with a range of labeled data amounts, using a Wide ResNet backbone with a widen factor of 2 for CIFAR10 and 6 for CIFAR100. All numbers below are Top1 error rates, so lower is better.

The standout result is FreeMatch at just forty labeled CIFAR10 images. Plain FreeMatch sits at a 14.85 percent error rate, and adding CBE drops that to 6.13 percent, a swing of more than eight and a half points. FixMatch sees a smaller but still real gain at the same label count, dropping from 8.15 percent to 7.21 percent. On CIFAR100 with four hundred labeled images, both base methods improve by a more modest amount, FixMatch by about two thirds of a point and FreeMatch by about three quarters of a point. One result worth noting plainly is that at the CIFAR10 250 label setting, FixMatch with CBE actually reports a slightly higher error rate than plain FixMatch, 6.88 percent against 5.96 percent, the one place in this table where the method does not clearly help and the paper does not call out or explain that specific gap.

The pattern across the rest of the table lines up with a reasonable story, the benefit of a better behaved ensemble matters most exactly when labeled data is scarcest and a model’s own predictions are least reliable to begin with, and that benefit shrinks, though rarely vanishes, as more labeled data becomes available and the base method’s pseudo labels get more trustworthy on their own.

The superior performance of FreeMatch compared with FixMatch can be attributed to its threshold policy, but CBE improves both by generating unbiased and low variance pseudo labels regardless of which threshold policy sits on top of it.Reading of the CBE comparison discussion in the source paper

What the ablation actually isolates

The authors run a focused ablation on CIFAR10 with forty labeled images, building CBE up one piece at a time on top of FreeMatch.

Just adding the multi head architecture, with neither extra loss term active, already improves error from 14.85 to 10.26 percent, confirming an ensemble structure alone provides some benefit even before addressing the homogeneous prediction problem. Adding the Low Bias loss on top brings error down further to 8.83 percent, evidence that decorrelating the heads genuinely helps rather than just theoretically sounding like it should. Adding the Low Variance loss last brings the final error down to 6.13 percent, the largest single jump of the three additions, which suggests that anchoring the ensemble’s variance against the labeled ground truth is doing more work here than the decorrelation step alone.

A companion set of accuracy curves in the paper shows the mechanism behind these numbers visually. The architecture only version, without either loss term, does raise accuracy early on, but its curve is described as prone to the homogeneous prediction problem as training continues, the multiple heads converging and eroding the ensemble’s advantage over time. Adding both losses keeps the curve climbing more steadily across the full two hundred epochs of training used in these experiments.

Is the pseudo label quality gain real, not just an average accuracy artifact

Beyond final error rates, the paper checks pseudo label quality more directly using two additional angles. The first is a Sampling Rate metric, tracking what fraction of unlabeled data actually clears the confidence threshold and gets used as a pseudo label at all. Comparing FixMatch and FreeMatch against their CBE augmented versions, CBE achieves higher pseudo label accuracy while using a lower sampling rate than either base method, meaning it is being more selective and yet its selections are more often correct, which is a stronger result than simply lowering a threshold to sample more aggressively.

The second angle is a wall clock training time comparison on FixMatch, run on a single RTX 3090 GPU. FixMatch with CBE trained for only about half the training time of plain FixMatch reaches a comparable or better CIFAR10 forty label error rate, 5.20 percent for CBE at 4096 minutes against 7.47 percent for plain FixMatch at the same 4096 minutes, and CBE at only 2048 minutes still nearly matches plain FixMatch’s full training run at 7.45 percent. That is a meaningful practical claim, not just a theoretical one, since faster convergence to a given accuracy directly translates into lower compute cost for anyone actually running this in practice.

The third check is qualitative, comparing confusion matrices for FreeMatch against FreeMatch with CBE across training epochs ten, fifty, and two hundred on CIFAR10 with forty labels. Early in training, at epoch ten, plain FreeMatch’s confusion matrix already shows meaningful confusion between visually similar classes such as cat and dog. By epoch two hundred FreeMatch has mostly resolved this, but CBE’s confusion matrix at the same epoch shows tighter diagonal concentration overall, consistent with the lower final error rate reported in the main results table.

What all this costs

Given how much machinery sits behind the method, the actual computational overhead is strikingly small. The paper reports a comparison directly against plain FixMatch and FreeMatch.

That works out to an increase of roughly 0.136 million parameters and 0.005 million FLOPs, a rounding error relative to the base network’s total size. This is the direct payoff of the shared channel design, where most of the expanded feature map is common across heads and only a thin private slice differs between them, rather than duplicating an entire network’s worth of parameters the way a full Model Ensemble would require.

Honest limitations

Where this fits in the wider computer vision picture

The broader lesson here generalizes past pseudo labeling specifically. Any pipeline that reuses a model’s own predictions to generate its next round of training signal, which describes a great deal of modern computer vision beyond just classification, inherits the same risk of confidently wrong outputs quietly poisoning the training loop. Semi supervised object detection, self training based domain adaptation, and even some forms of knowledge distillation all share this same structural vulnerability to biased and high variance self generated targets. The channel split ensemble trick demonstrated here, getting genuine ensemble diversity almost for free by expanding one feature map rather than duplicating an entire network, looks like a pattern worth testing in any of those adjacent settings where a full Model Ensemble would simply be too expensive to justify.

Complete PyTorch implementation

The paper specifies every loss term with enough precision to reimplement, but does not release its own code. Below is an independent reimplementation covering the shared 1×1 convolution feature expansion into multiple heads, the ensemble prediction with confidence thresholding, the Low Bias loss, the Low Variance loss, a simplified FixMatch style training step built on top of it, and a smoke test on randomly generated dummy image batches.

# cbe_reimplementation.py
# Independent PyTorch reimplementation of Channel-Based Ensemble (CBE) from
# "A Channel-ensemble Approach, Unbiased and Low-variance Pseudo-labels is
# Critical for Semi-supervised Classification" by Wu, Pang, Zhang, and Huang.
# This is not the authors' own code, it is a reconstruction built from the
# paper's equations for educational use.

import torch
import torch.nn as nn
import torch.nn.functional as F


class SimpleBackbone(nn.Module):
    # Stand in for a Wide ResNet feature extractor, plain conv stack
    def __init__(self, in_channels=3, feat_channels=64):
        super().__init__()
        self.net = nn.Sequential(
            nn.Conv2d(in_channels, 32, 3, padding=1), nn.ReLU(),
            nn.MaxPool2d(2),
            nn.Conv2d(32, feat_channels, 3, padding=1), nn.ReLU(),
        )

    def forward(self, x):
        return self.net(x)  # [batch, feat_channels, H, W]


class ChannelBasedEnsembleHead(nn.Module):
    # The single 1x1 conv that expands one feature map into M sub-features,
    # each made of a shared block and a small private block per head.
    def __init__(self, feat_channels, num_classes, num_heads=5, private_channels=8):
        super().__init__()
        self.num_heads = num_heads
        self.feat_channels = feat_channels
        self.private_channels = private_channels
        total_out = feat_channels + (num_heads - 1) * private_channels
        self.expand = nn.Conv2d(feat_channels, total_out, kernel_size=1)
        self.pool = nn.AdaptiveAvgPool2d(1)
        self.classifiers = nn.ModuleList([
            nn.Linear(feat_channels + private_channels, num_classes) for _ in range(num_heads)
        ])

    def forward(self, feat):
        expanded = self.expand(feat)  # [batch, total_out, H, W]
        shared, private = expanded[:, :self.feat_channels], expanded[:, self.feat_channels:]
        pooled_shared = self.pool(shared).flatten(1)  # [batch, feat_channels]

        logits_per_head = []
        private_feats = []
        for m in range(self.num_heads):
            if m == 0:
                priv = torch.zeros(feat.size(0), self.private_channels, device=feat.device)
            else:
                start = (m - 1) * self.private_channels
                priv_map = private[:, start:start + self.private_channels]
                priv = self.pool(priv_map).flatten(1)
            private_feats.append(priv)
            head_input = torch.cat([pooled_shared, priv], dim=-1)
            logits_per_head.append(self.classifiers[m](head_input))

        logits = torch.stack(logits_per_head, dim=1)  # [batch, M, num_classes]
        private_stack = torch.stack(private_feats, dim=1)  # [batch, M, private_channels]
        return logits, private_stack


def ensemble_prediction(logits, tau):
    # logits [batch, M, num_classes], thresholds low confidence heads out of the average
    probs = F.softmax(logits, dim=-1)
    conf, _ = probs.max(dim=-1)  # [batch, M]
    keep = (conf > tau).float().unsqueeze(-1)  # [batch, M, 1]
    ensembled = (keep * probs).sum(dim=1) / logits.size(1)
    return ensembled  # [batch, num_classes], soft pseudo label distribution


def low_bias_loss(private_stack):
    # penalize correlation between the private features of different heads
    batch, num_heads, dim = private_stack.shape
    centered = private_stack - private_stack.mean(dim=0, keepdim=True)
    total = torch.tensor(0.0, device=private_stack.device)
    count = 0
    for i in range(num_heads):
        for j in range(num_heads):
            if i == j:
                continue
            cov = (centered[:, i] * centered[:, j]).sum(dim=-1).mean()
            total = total + cov.abs()
            count += 1
    return total / max(count, 1)


def low_variance_loss(ensembled_probs, one_hot_labels):
    # approximate covariance between the ensemble prediction and the ground truth
    p = ensembled_probs - ensembled_probs.mean(dim=0, keepdim=True)
    g = one_hot_labels - one_hot_labels.mean(dim=0, keepdim=True)
    cov = (p * g).sum(dim=-1).mean()
    return 1.0 - cov


class CBEModel(nn.Module):
    def __init__(self, num_classes, feat_channels=64, num_heads=5, private_channels=8):
        super().__init__()
        self.backbone = SimpleBackbone(feat_channels=feat_channels)
        self.heads = ChannelBasedEnsembleHead(feat_channels, num_classes, num_heads, private_channels)

    def forward(self, x):
        feat = self.backbone(x)
        logits, private_stack = self.heads(feat)
        return logits, private_stack


def supervised_loss(logits_labeled, labels):
    # eq (1), average cross entropy across all heads for labeled data
    num_heads = logits_labeled.size(1)
    losses = [F.cross_entropy(logits_labeled[:, m], labels) for m in range(num_heads)]
    return torch.stack(losses).mean()


def ensemble_supervised_loss(logits_branch1, pseudo_label_probs):
    # eq (3), each head of branch one is trained toward the soft ensemble pseudo label
    num_heads = logits_branch1.size(1)
    log_probs = F.log_softmax(logits_branch1, dim=-1)
    losses = [-(pseudo_label_probs * log_probs[:, m]).sum(dim=-1).mean() for m in range(num_heads)]
    return torch.stack(losses).mean()


def train_step(model, optimizer, labeled_x, labeled_y, unlabeled_weak, unlabeled_strong,
               num_classes, tau=0.9):
    model.train()
    optimizer.zero_grad()

    logits_l, _ = model(labeled_x)
    l_l = supervised_loss(logits_l, labeled_y)

    logits_weak, _ = model(unlabeled_weak)  # branch two, weakly augmented
    logits_strong, private_strong = model(unlabeled_strong)  # branch one, strongly augmented

    pseudo_probs = ensemble_prediction(logits_weak, tau).detach()
    l_e = ensemble_supervised_loss(logits_strong, pseudo_probs)

    l_fu = low_bias_loss(private_strong)

    one_hot = F.one_hot(labeled_y, num_classes).float()
    ensembled_labeled = ensemble_prediction(logits_l, tau=0.0)  # no threshold needed on labeled data
    l_lv = low_variance_loss(ensembled_labeled, one_hot)

    total_loss = l_l + l_e + l_fu + l_lv
    total_loss.backward()
    optimizer.step()
    return total_loss.item(), l_l.item(), l_e.item(), l_fu.item(), l_lv.item()


def evaluate(model, x, y):
    model.eval()
    with torch.no_grad():
        logits, _ = model(x)
        ensembled = ensemble_prediction(logits, tau=0.0)
        preds = ensembled.argmax(dim=-1)
        acc = (preds == y).float().mean().item()
    return acc


if __name__ == '__main__':
    # Smoke test on randomly generated dummy image batches, no real dataset needed
    torch.manual_seed(0)
    num_classes = 10
    model = CBEModel(num_classes=num_classes, feat_channels=32, num_heads=5, private_channels=4)
    optimizer = torch.optim.SGD(model.parameters(), lr=0.03, momentum=0.9, nesterov=True)

    for step in range(10):
        labeled_x = torch.randn(8, 3, 32, 32)
        labeled_y = torch.randint(0, num_classes, (8,))
        unlabeled_weak = torch.randn(16, 3, 32, 32)
        unlabeled_strong = unlabeled_weak + 0.1 * torch.randn_like(unlabeled_weak)

        total, l_l, l_e, l_fu, l_lv = train_step(
            model, optimizer, labeled_x, labeled_y, unlabeled_weak, unlabeled_strong, num_classes
        )
        acc = evaluate(model, labeled_x, labeled_y)
        print(f'step {step} total {total:.4f} supervised {l_l:.4f} ensemble {l_e:.4f} low_bias {l_fu:.4f} low_var {l_lv:.4f} batch_acc {acc:.4f}')

    print('Smoke test complete, model trains end to end on dummy data without errors.')

Conclusion

The core achievement of this paper is turning a fuzzy intuition, that a single self trained model’s predictions cannot fully be trusted, into a formal bias and variance argument, and then building an architecture that addresses both halves of that argument at once rather than picking one. The Chebyshev bound is not just decoration, it directly predicts the two design requirements the rest of the method satisfies, stable individual heads and low correlation between them, and the ablation table confirms both requirements matter in practice, not just in theory.

The conceptual shift worth carrying forward is treating pseudo label quality as something you can engineer directly rather than something you can only manage indirectly through a smarter confidence threshold. FixMatch and FreeMatch both improve on earlier work mainly by refining which predictions to trust. CBE instead asks whether the predictions themselves can be made more trustworthy in the first place, and the accuracy gains, especially in the extremely low label regime, suggest that question was worth asking.

Transferability looks genuinely promising given how architecturally lightweight the trick is. Because the ensemble effect comes from splitting one feature map rather than duplicating a whole network, this pattern should translate cleanly to other settings that already rely on self generated training signal, semi supervised object detection, self training in domain adaptation, and even certain knowledge distillation setups where a teacher’s own confidence cannot always be taken at face value.

The honest limitations deserve equal attention. Every result here comes from CIFAR10 and CIFAR100 under a two hundred epoch training cap chosen for hardware reasons, the CIFAR10 250 label result for FixMatch quietly underperforms the base method without explanation, and the number of heads and the private channel budget were fixed rather than swept in the reported experiments. None of that undermines the core argument, but it does mean the specific numbers reported here should be treated as a strong first demonstration rather than a settled final word.

Where this goes next probably depends on testing the method at larger scale, on datasets beyond CIFAR, and with a systematic sweep over head count and training length to see how robust the reported gains really are outside the exact settings tested. Until that happens, the fair read is that CBE offers a cheap, theoretically motivated, and empirically convincing argument for treating pseudo label bias and variance as a first class design problem, one worth trying as a near free addition to an existing pseudo labeling pipeline.
