BKSR: A Unified Loop for Blind Hyperspectral Image Super Resolution

Why hyperspectral super resolution is its own beast

Super resolution, the task of turning a low resolution image into a high resolution one, is familiar territory for ordinary photos. Hyperspectral imaging changes the game in two ways that the paper from Zhixiong Yang and colleagues at the National University of Defense Technology and Beihang University lays out clearly.

The first is sheer spectral depth. A hyperspectral image can carry more than 200 narrow bands, where a normal photo carries three. That depth is what lets these images identify materials by their spectral signature, but it also means huge computational cost and heavy redundancy between neighboring bands. The second is that real degradation is unknown. The blur kernel that smeared the image and the noise that corrupted it are not given, and worse, the noise often differs from one band to the next rather than being uniform. Assuming a tidy fixed blur and uniform noise, as clean benchmark methods do, breaks the moment you point the sensor at the real world.

Put those together and hyperspectral super resolution is not one inverse problem but three coupled ones. You need to decide which bands to work with, you need to figure out how the image was blurred, and you need to reconstruct the sharp image itself. The paper writes these as the band, the kernel, and the image, and the whole argument turns on how you treat their relationship.

The trap in solving one thing at a time

The instinct in the field has been to handle these unknowns in sequence. First cut the hundreds of bands down to a manageable subset to save computation. Then estimate the degradation. Then restore the image. It sounds sensible and it is exactly where things go wrong.

The problem is the independence assumption hiding inside that pipeline. When you permanently drop bands up front, you are betting that the discarded ones were redundant. But a band that looks redundant for viewing may hold the high frequency texture that is essential for identifying the unknown blur kernel. Throw it away and you have blinded the kernel estimator before it starts. That creates a painful trade off. Use every band and you pay a prohibitive computational cost. Use few bands and you risk discarding the very information the later steps depend on. The paper argues the trade off is not really about how you rank bands. It is about treating the three unknowns as isolated when they are deeply intertwined.

One statistical frame for three unknowns

BKX-HMM is the paper’s answer, a hidden Markov model that binds the band, the kernel, and the image into a single evolving state. Rather than a fixed pipeline, it defines a hidden state at each step as the tuple of the currently selected bands, the current kernel estimate, and the current image estimate, and it lets that state evolve through Markov transitions.

Underneath, the whole thing is posed as a Bayesian estimation. You want the most probable combination of band, kernel, and image given the observed low resolution data, which factors into a likelihood term and three priors.

Because solving all three at once is intractable, BKX-HMM alternates. Each Markov transition updates one variable while holding the others fixed, and repeats. The clever reframing is that this turns the old complexity trade off into a convergence question instead. If the sampling process is ergodic, meaning it can eventually reach every relevant state, then a finite sequence of these local transitions provably approaches the full spectrum solution. You compute on a few bands at a time but the history of those samples carries the global picture. The paper backs this with a convergence argument that leans on standard tools like ergodicity of the sampling chain and the Bolzano-Weierstrass theorem for the continuous parts.

A band that looks redundant on screen may be the one clue that reveals how the image was blurred. Solve the three problems together and you stop throwing that clue away. A plain reading of the BKSR argument

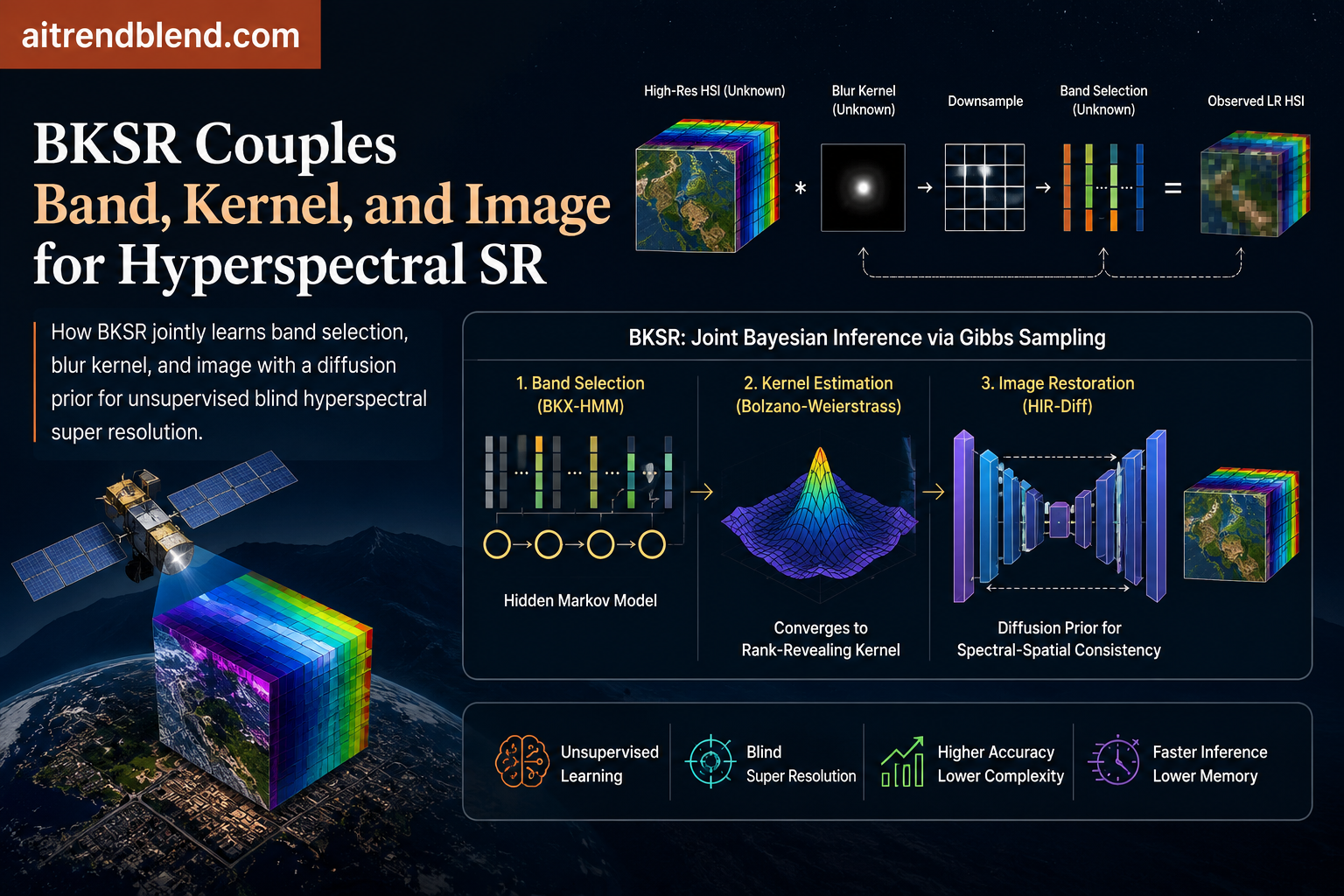

Three modules in a closed loop

The method built on this frame is BKSR, and it runs three modules that feed each other in a cycle rather than a line.

Gibbs sampling band selection

The first module, called GBS, picks bands by Gibbs sampling driven by spectral variance. Instead of ranking all bands once and freezing the choice, it proposes candidate subsets and accepts them with a probability derived from how well the current reconstruction explains the data. Over many iterations the sampling history aggregates cross band correlations, so the model gains full spectrum awareness while each step only ever touches a small subset. That is the mechanism that breaks the trade off in practice. The ablation is pointed here. Simply grabbing the highest variance bands, as a singular value decomposition would, is suboptimal, because high variance bands carry busy textures that act as confounders during kernel estimation, while the quieter low to medium variance bands that fixed methods discard often hold the simpler structure that makes the blur easier to read.

Test time kernel estimation

The second module, TKE, learns the unknown blur at test time with a tiny network. There is no pretraining on labeled kernels. A lightweight estimator is trained on the fly, guided by two forces. The reconstruction posterior from the sampled bands pulls the kernel toward whatever explains the observed image, while a stochastic kernel prior, drawn randomly from a plausible kernel distribution, injects exploration so the estimator does not collapse into a bad local optimum. The paper frames this as a form of Langevin style sampling, where the random deviation behaves like a principled noise term rather than arbitrary jitter. The estimator itself is minimal, a two layer network with a ReLU and a Softmax, carrying only about 387 thousand parameters and running in roughly a second.

Robust image restoration

The third module, RHR, restores the image by steering a frozen off the shelf diffusion model. It never fine tunes the diffusion network. Instead it adds guidance to the reverse process, combining three gradient signals at each step.

The first term is a data fidelity posterior that keeps the result consistent with the observed low resolution image. The second is the diffusion prior, the natural image knowledge baked into the pre trained model. The third is a spectral prior the authors introduce, a hyper Laplacian term over horizontal, vertical, and spectral gradients that adapts to noise which varies from band to band.

That band adaptive noise handling is the part most methods miss. Competing approaches apply one global smoothing weight, which either under cleans the noisy bands or over smooths the clean ones. By estimating a separate noise level per band, RHR can hit heavy noise hard where it lives and leave the clean bands untouched. And here is the crux, all three modules pass information back around. The restoration reweights which bands and kernels matter, which changes the next round of sampling and kernel estimation, closing the loop.

What the numbers show

The evaluation spans five scenarios, four synthetic and one real, across public datasets including Washington DC, Chikusei, Indian Pines, and Salinas, with a real world test on the FOSTER scenes. The cases climb in difficulty from a known blur with uniform noise, through unknown Gaussian and motion blur, to noise that differs per band, to inpainting with large missing regions, and finally to real captured data. BKSR is compared against unsupervised methods like DDS2M and HIR-Diff and several supervised networks.

The motion blur result is the most telling. Motion kernels are irregular and hard to guess, exactly the case where methods that assume a fixed kernel prior break down and where supervised networks trained on clean blur fail to generalize. A gain of up to 5.3 dB there comes from the synergy between the band selector feeding clean structural cues and the kernel estimator learning the blur from scratch. On the per band noise case, the 1.57 dB improvement on Salinas is a direct win for the spectral prior, since the whole difference is about adapting to noise that a single global setting cannot match. And the inpainting result is arguably the most surprising, because BKSR was never designed for inpainting. Its unified Bayesian frame simply treats missing pixels as more unknowns and lets the diffusion prior fill them in, which is a clean demonstration that the model captures the underlying image distribution rather than memorizing a task.

On real data, where no ground truth exists to compute a standard fidelity score, the authors turn to reference free quality measures for both spatial naturalness and spectral consistency, and BKSR leads on both. Earlier methods, boxed in by fixed band choices and preset noise settings, tend to produce over smoothed results that look close to the blurry input. BKSR estimating the kernel and noise per scene is what lets it avoid that.

The cost, and it is modest

A method this elaborate could easily be too slow to use, so the runtime breakdown matters. It is reassuringly light. The kernel estimator carries about 387 thousand parameters and adds roughly a second. The band selector has no learnable parameters at all and adds about four seconds. The bulk of the work, around 21 seconds and 6.3 gigabytes of memory, sits in the restoration module, which drives a diffusion model of about 391 million parameters.

The important detail is that this diffusion model stays frozen. It was pre trained in an unsupervised way on roughly a million Sentinel-2 remote sensing patches and is used as a plug and play prior, needing no fine tuning for the task. So the heavy asset is fixed and reused, and everything BKSR actually learns lives in the tiny kernel estimator and the parameter free sampler. That is what keeps a triple coupled sampling loop within reach of a single laptop grade GPU, in this case an RTX 4090.

The honest limits

The paper is fairly candid, and a few caveats deserve stating plainly. The restoration quality is bounded by the frozen diffusion prior, which was trained on remote sensing RGB patches. When the true scene sits far from what that prior has seen, there is only so much the guidance terms can do, and the method rides the prior rather than exceeding it. This is the same dependence any plug and play diffusion approach carries.

There is also a tuning story behind the clean results. The number of sampled bands, the count of Gibbs steps, the number of prior updates, and the two update step sizes were all selected from sweeps, and the authors settle on small values such as three bands and five sampling steps because larger ones bought little at rising cost. That is a sensible engineering choice, but it means the reported behavior reflects a tuned operating point, and the sampling based nature of the method introduces run to run variability that a deterministic pipeline would not have. The convergence guarantees rest on assumptions like bounded gradient variance and local smoothness that hold in analysis but are worth remembering when results wander.

Finally, the scope is remote sensing and natural hyperspectral scenes. The gains on Gaussian blur, motion blur, per band noise, and inpainting are real, but they live on this family of imagery. How the coupled sampler behaves on very different hyperspectral domains, such as medical or industrial spectral imaging, is not shown here and should not be assumed.

Why the coupled sampling idea travels

Step back and BKSR is an argument about problem structure more than about hyperspectral images specifically. Whenever a task hides several unknowns that depend on each other, the reflex to solve them in sequence can destroy information at every handoff. Casting them as a joint state and sampling their co evolution keeps the dependencies alive. That pattern could apply to other blind inverse problems where a preprocessing step currently discards data that a later step needs.

The way BKSR uses the diffusion model is also worth borrowing. It never trains the generative model for the task. It freezes a general prior and injects task specific guidance, a data fidelity term and a domain specific spectral term, into the reverse process. That plug and play stance is increasingly how people put large generative models to work on niche scientific problems without the data to train one from scratch. Anyone facing a specialized restoration task with a good general diffusion model on hand can take the same route.

Conclusion

BKSR makes a focused case that the hard part of blind hyperspectral super resolution is not any single unknown but the habit of separating them. Cutting bands, guessing the blur, and rebuilding the image in sequence looks efficient and quietly sabotages itself, because each early decision discards signal the later steps need. The paper’s core move is to stop separating and instead bind all three into one hidden Markov state that evolves together.

The engineering that follows is disciplined. A Gibbs sampler explores the full spectrum a few bands at a time, judged by how well the current reconstruction fits the data. A sub megabyte network learns the unknown blur at test time, steadied by a stochastic prior that keeps it out of bad optima. And a frozen diffusion model supplies the image prior, guided by a spectral term that finally handles noise which differs band by band. Each feeds the others in a closed loop rather than a line.

The evidence is broad rather than narrow, covering Gaussian and motion blur, per band noise, aggressive inpainting, and real captured scenes, with the largest gains exactly where blind methods usually struggle. And it does this at a cost measured in seconds on a single GPU, because the one heavy asset, the diffusion model, stays frozen and reused.

The limits keep it grounded. The prior caps the ceiling, the operating point is tuned, and the evidence lives in remote sensing imagery. Those are the seams a follow up should work on. For now BKSR offers a durable lesson that reaches past its own domain. When several unknowns are entangled, the right move is often not a cleverer way to separate them, but a principled way to refuse.

The listing below reconstructs the closed loop of BKSR at a conceptual level, namely the variance driven Gibbs band selection with an acceptance probability from the reconstruction posterior, a lightweight test time kernel estimator, and the three term restoration update that blends data fidelity, a diffusion prior, and a spectral gradient prior. It uses a tiny dummy hyperspectral tensor so it runs anywhere and ends with a smoke test. Swap the stand in diffusion score for a real frozen model to reproduce the full method.

# bksr_loop.py
# Minimal, runnable reconstruction of the BKSR closed loop.
# The diffusion score is a stand in so the file runs without a model.

import torch
import torch.nn as nn
import torch.nn.functional as F


def downsample(x, s=4):
    """Average pool as a simple stand in for the degradation downsample."""
    return F.avg_pool2d(x, s)


def recon_error(Y, X, kernel, s=4):
    """Data fidelity between observed LR Y and blurred, downsampled X."""
    c = X.shape[1]
    k = kernel.expand(c, 1, *kernel.shape[-2:])
    blurred = F.conv2d(X, k, padding=kernel.shape[-1] // 2, groups=c)
    return F.mse_loss(downsample(blurred, s), Y)


def gibbs_band_select(Y, X, kernel, n=3, steps=5, s=4):
    """Variance driven Gibbs sampling of a band subset.

    Proposes swapping one band at a time and accepts with a probability
    from the reconstruction posterior, so low variance bands that help
    the kernel can still be retained. Returns the selected band indices.
    """
    C = Y.shape[1]
    var = Y.var(dim=(0, 2, 3))                  # per band variance
    probs = (var / var.sum())                   # variance driven proposal
    cur = torch.multinomial(probs, n, replacement=False)
    cur_cost = recon_error(Y[:, cur], X[:, cur], kernel, s)

    for _ in range(steps):
        cand = torch.multinomial(probs, n, replacement=False)
        cand_cost = recon_error(Y[:, cand], X[:, cand], kernel, s)
        # acceptance probability from the posterior (lower cost is better)
        accept = torch.exp((cur_cost - cand_cost).clamp(max=0.0))
        if torch.rand(1).item() < accept.item():
            cur, cur_cost = cand, cand_cost     # accept the move
    return cur


class KernelEstimator(nn.Module):
    """Lightweight test time kernel network (two layers, ReLU + Softmax)."""

    def __init__(self, ksize=9, hidden=64):
        super().__init__()
        self.ksize = ksize
        self.net = nn.Sequential(
            nn.Linear(ksize * ksize, hidden),
            nn.ReLU(),
            nn.Linear(hidden, ksize * ksize),
        )
        self.register_buffer("z", torch.randn(1, ksize * ksize))

    def forward(self):
        # Softmax keeps the kernel non negative and summing to one
        k = F.softmax(self.net(self.z), dim=-1)
        return k.view(1, 1, self.ksize, self.ksize)


def spectral_prior_grad(X, gamma=0.8):
    """Hyper Laplacian gradient over horizontal, vertical, spectral axes."""
    dh = X[:, :, 1:, :] - X[:, :, :-1, :]
    dv = X[:, :, :, 1:] - X[:, :, :, :-1]
    ds = X[:, 1:, :, :] - X[:, :-1, :, :]      # spectral gradient
    mag = sum(g.abs().pow(gamma).mean() for g in (dh, dv, ds))
    return torch.autograd.grad(mag, X, create_graph=False)[0]


def rhr_step(Y, X, kernel, score_fn, lam_x=0.9, lam_l=0.05, s=4):
    """One restoration update mixing three gradient terms."""
    X = X.detach().requires_grad_(True)
    fid = recon_error(Y, X, kernel, s)
    fid_grad = torch.autograd.grad(fid, X)[0]                  # data fidelity
    diff_grad = score_fn(X.detach())                          # diffusion prior
    spec_grad = spectral_prior_grad(X.detach().requires_grad_(True))
    return (X - lam_x * fid_grad + diff_grad - lam_l * spec_grad).detach()


def smoke_test():
    """Runs on a tiny dummy hyperspectral tensor, no real model needed."""
    torch.manual_seed(0)
    C, H, W, s = 16, 64, 64, 4                  # 16 bands for the demo
    X = torch.rand(1, C, H, W)                  # current HR estimate
    Y = downsample(X, s) + 0.05 * torch.randn(1, C, H // s, W // s)

    kernel_net = KernelEstimator(ksize=9)
    kernel = kernel_net()
    # stand in diffusion score, a gentle smoothing pull toward the mean
    score_fn = lambda z: 0.01 * (z.mean(dim=(2, 3), keepdim=True) - z)

    for it in range(3):
        bands = gibbs_band_select(Y, X, kernel.detach(), n=3, steps=5, s=s)
        X = rhr_step(Y, X, kernel.detach(), score_fn, s=s)
        print(f"iter {it}: bands {sorted(bands.tolist())}, "
              f"fidelity {recon_error(Y, X, kernel.detach(), s):.4f}")

    assert X.shape == (1, C, H, W)
    assert torch.isfinite(X).all()
    print("kernel params:", sum(p.numel() for p in kernel_net.parameters()))
    print("smoke test passed")


if __name__ == "__main__":
    smoke_test()
